V-700 Series UV-Visible/NIR Spectrophotometers

With more than forty years of experience in the design of spectrophotometers, JASCO offers a complete line of UV-Vis/NIR instruments. The V-700 series consists of five distinct models designed to meet the capabilities required by any analytical laboratory. From an innovative optical layout to a simple comprehensive instrument control and data analysis software interface, the V-700 series does not compromise on accuracy, performance or reliability. JASCO is proud of its successful analytical instrument development, and is excited about the advances offered by this powerful product lineup. JASCO fully guarantees the reliability and performance of these instruments, and provides a complete range of customer support services.

The series includes:

V-730 UV-Vis Spectrophotometer

v730-01

Routine analysis through advanced research methods. The V-730 is an economical, general-purpose instrument with a compact design to...

V-750 UV-Vis Spectrophotometer

V750-01

The V-750 is a high resolution UV-visible double-beam spectrophotometer with single monochromator, variable spectral bandwidth and a...

V-760 UV-Vis Spectrophotometer

V760-01

The V-760 is a high resolution UV-visible double-beam spectrophotometer with double monochromator for exceptional stray light and...

V-770 UV-Vis Spectrophotometer

v770-01

The V-770 UV-Visible-Near Infrared Spectrophotometer is a unique optical design incorporating a dual-grating, dual-detector design...

V-780 UV-Vis Spectrophotometer

V780-01

The V-780 UV-Visible-Near Infrared Spectrophotometer is a unique optical design incorporating a dual-grating, dual-detector design...

Features

Compact Design

The compact optical design of the V-700 Series reduces space requirements in the modern laboratory.

Excellent optical performance

Reduced stray light enables highly precise measurements over a wide photometric range.

High speed scanning

High throughput optics and fast detectors provide high-speed scanning without wavelength tracking errors.

Dark correction

Stray light reduction features enable highly-accurate measurements of high-absorbance samples.

Monochromator step scanning

Step scan function provides reliable peak assignment of samples with sharp or narrow absorption peaks.

User-friendly graphical interfaces

New iRM intelligent remote module, Spectra Manager II and Spectra Manager CFR control and analysis systems

IQ Accessory

Automatic accessory recognition.

IQ Start

A registered software program can be activated with a simple push of the 'Start Button'.

Full range of Accessories

Over 50 sampling accessories for gas, liquid and solid samples are available for specific sampling applications.

Accurate and reliable

A USP, EP and JP compliant instrument validation is provided. IQ/OQ support is available as an option.

Wide wavelength range from UV to NIR

High energy throughput provides excellent signal-to-noise ratio for the entire UV to NIR spectral range.



V-700 Series Specifications

V-730 UV-Vis Spectrophotometer Specifications

Optical System Rowland off-circle arrangement
Single monochromator
Double beam type
Light source Halogen lamp, Deuterium lamp
Wavelength range 190 to 1100 nm
Wavelength accuracy +/-0.2 nm (at 656.1 nm)
Wavelength repeatability +/-0.1 nm
Spectral bandwidth (SBW) 1 nm
Stray light 1 % (198 nm KCL 12 g/L aqueous solution)
0.02 % (220 nm NaI 10 g/L aqueous solution)
0.02 % (340 nm NaNO2 50 g/L aqueous solution)
0.02 % (370 nm NaNO2 50 g/L aqueous solution)
SBW: 1 nm
Photometric range -3~3 Abs
Photometric accuracy +/-0.0015 Abs (0 to 0.5 Abs)
+/-0.0025 Abs (0.5 to 1 Abs)
+/-0.3 %T Tested
with NIST SRM 930D
Photometric repeatability +/-0.0005 Abs (0 to 0.5 Abs)
+/-0.0005 Abs (0.5 to 1 Abs)
Tested with NIST SRM 930D
Scanning speed 10-8000 nm/min
Slew speed 24,000 nm/min
RMS noise 0.00004 Abs
(0 Abs, wavelength: 500 nm, measurement time: 60 sec, SBW: 1 nm)
Baseline stability 0.0004 Abs/hour
(Value obtained more than one hour after turning on the source,
when the room temperature is stabilized, wavelength: 250 nm,
response: slow)
Baseline flatness +/-0.0005 Abs (200 - 1000 nm)
Detector Silicon photodiode
Standard facilities IQ accessories, Start button, Analog output
Standard program Abs/%T meter, Quantitative analysis, Spectrum measurement,
Time course measurement, Fixed wavelength measurement, Validation,
Daily maintenance, Macro command (only for iRM),
Two wavelengths time course measurement (only for PC)
Dimensions and weight 486(W) x 441(D) x 216(H) mm, 15 kg
Power requirements 120 VA
Installation requirements Room temperature: 15-30 Celsius, humidity: below 85%

V-750 UV-Vis Spectrophotometer Specifications

Optical System Czerny-Turner mount
Single monochromator
Fully symmetrical double beam type
Light Source Halogen lamp, Deuterium lamp
Wavelength range 190 to 900 nm
Wavelength accuracy +/-0.2 nm (at 656.1 nm)
Wavelength repeatability +/-0.05 nm
Spectral bandwidth (SBW) 0.1, 0.2, 0.5, 1, 2, 5, 10 nm
L2, L5, L10 nm (low stray light mode)
M1, M2 nm (micro cell mode)
Stray light 1 % (198 nm KCL 12 g/L aqueous solution)
0.005 % (220 nm NaI 10 g/L aqueous solution)
0.005 % (340 nm NaNO2 50 g/L aqueous solution)
0.005 % (370 nm NaNO2 50 g/L aqueous solution)
SBW: L2 nm
Photometric range -4~4 Abs
Photometric accuracy +/-0.0015 Abs (0 to 0.5 Abs)
+/-0.0025 Abs (0.5 to 1 Abs)
+/-0.3 %T
Tested with NIST SRM 930D
Photometric repeatability +/-0.0005 Abs (0 to 0.5 Abs)
+/-0.0005 Abs (0.5 to 1 Abs)
Tested with NIST SRM 930D
Scanning speed 10~4000 nm/min (8000 nm/min in preview mode)
Slew speed 12,000 nm/min
RMS noise 0.00003 Abs
(0 Abs, wavelength: 500 nm, measurement time: 60 sec, SBW: 2 nm)
Baseline stability 0.0003 Abs/hour
(Value obtained more than two hours after turning on the source, when
the room temperature is stabilized, wavelength: 250 nm, response: slow
and SBW: 2 nm)
Baseline flatness +/-0.0002 Abs (200 - 850 nm)
Detector Photomultiplier tube
Standard facilities IQ accessories, Start button, Analog output
Standard program Abs/%T meter, Quantitative analysis, Spectrum measurement,
Time course measurement, Fixed wavelength measurement, Validation,
Daily maintenance, Macro command (only for iRM),
Two wavelengths time course measurement (only for PC)
Dimensions and weight 460(W) x 602(D) x 268(H) mm, 27 kg
Power requirements 150 VA
Installation requirements Room temperature: 15-30 Celsius, humidity: below 85%

V-760 UV-Vis Spectrophotometer Specifications

Optical System Czerny-Turner mount
Double monochromator
Fully symmetrical double beam type
Light Source Halogen lamp, Deuterium lamp
Wavelength range 187 to 900 nm
Wavelength accuracy +/-0.1 nm (at 656.1 nm)
Wavelength repeatability +/-0.05 nm
Spectral bandwidth (SBW) 0.1, 0.2, 0.5, 1, 5, 2, 10 nm
L2, L5, L10 nm (low stray light mode)
M1, M2 nm (micro cell mode)
Stray light 1 % (198 nm KCL 12 g/L aqueous solution)
0.00008 % (220 nm NaI 10 g/L aqueous solution)
0.00008 % (340 nm NaNO2 50 g/L aqueous solution)
0.00008 % (370 nm NaNO2 50 g/L aqueous solution)
SBW: L2 nm
Photometric range -4~6 Abs
Photometric accuracy +/-0.0015 Abs (0 to 0.5 Abs)
+/-0.0025 Abs (0.5 to 1 Abs)
+/-0.3 %T
Tested with NIST SRM 930D
Photometric repeatability +/-0.0005 Abs (0 to 0.5 Abs)
+/-0.0005 Abs (0.5 to 1 Abs)
Tested with NIST SRM 930D
Scanning speed 10~4000 nm/min (8000 nm/min in preview mode)
Slew speed 12,000 nm/min
RMS noise 0.00003 Abs
(0 Abs, wavelength: 500 nm, measurement time: 60 sec, SBW: 2 nm)
Baseline stability 0.0003 Abs/hour
(Value obtained more than two hours after turning on the source, when
the room temperature is stabilized, wavelength: 250 nm, response: slow
and SBW: 2 nm)
Baseline flatness +/-0.0003 Abs (200 - 800 nm)
Detector Photomultiplier tube
Standard facilities IQ accessories, Start button, Analog output
Standard program Abs/%T meter, Quantitative analysis, Spectrum measurement,
Time course measurement, Fixed wavelength measurement, Validation,
Daily maintenance, Macro command (only for iRM),
Two wavelengths time course measurement (only for PC)
Dimensions and Weight 460(W) x 602(D) x 268(H) mm, 29 kg
Power requirements 150 VA
Installation requirements Room temperature: 15-30 Celsius, humidity: below 85%

V-770 UV-Visible-Near Infrared Spectrophotometer Specifications

Optical System Czerny-Turner mount
Single monochromator
Fully symmetrical double beam type
Light Source Halogen lamp, Deuterium lamp
Wavelength range 190 to 2700 nm (3200 nm, option)
Wavelength accuracy +/-0.3 nm (at 656.1 nm)
+/-1.5 nm (at 1312.2 nm)
Wavelength repeatability +/-0.05 nm (UV-Vis), +/-0.2 nm (NIR)
Spectral bandwidth (SBW) UV-Vis:
0.1, 0.2, 0.5, 1, 2, 5, 10 nm
L2, L5, L10 nm (low stray light mode)
M1, M2 nm (micro cell mode)
NIR:
0.4, 0.8, 1, 2, 4, 8, 20, 40
L8, L20, L40 nm (low stray light mode)
M4, M8 nm (micro cell mode)
Stray light 1 % (198 nm KCL 12 g/L aqueous solution)
0.005 % (220 nm NaI 10 g/L aqueous solution)
0.005 % (340 nm NaNO2 50 g/L aqueous solution)
0.005 % (370 nm NaNO2 50 g/L aqueous solution)
SBW: L2 nm

0.04 % (1420 nm: H2O)
0.1 % (1690 nm: CH2Br2 50 mm cell)
SBW: L8 nm

Photometric range UV-Vis: -4~4 Abs
NIR: -3~3 Abs
Photometric accuracy +/-0.0015 Abs (0 to 0.5 Abs)
+/-0.0025 Abs (0.5 to 1 Abs)
+/-0.3 %T Tested
with NIST SRM 930D
Photometric repeatability +/-0.0005 Abs (0 to 0.5 Abs)
+/-0.0005 Abs (0.5 to 1 Abs)
Tested with NIST SRM 930D
Scanning speed 10~4000 nm/min (8000 nm/min in preview mode)
Slew speed UV-Vis: 12,000 nm/min
NIR: 48,000 nm/min
RMS noise 0.00003 Abs
(0 Abs, wavelength: 500 nm, measurement time: 60 sec, SBW :2 nm)
Baseline stability 0.0003 Abs/hour
(Value obtained more than two hours after turning on the source, when
the room temperature is stabilized, wavelength: 250 nm, response: slow
and SBW: 2 nm)
Baseline flatness +/-0.0002 Abs (200 - 2500 nm)
Detector Photomultiplier tube, Peltier cooled PbS
Standard facilities IQ accessories, Start button, Analog output
Standard program Abs/%T Meter, Quantitative Analysis, Spectrum Measurement, Time Course Measurement, Fixed-Wavelength Measurement, Validation, Daily Maintenance, Macro command (only for iRM), Dual Wavelength Time Course Measurement (only for PC
Dimensions and weight 460(W) x 602(D) x 268(H) mm, 29 kg
Power requirements 150 VA
Installation requirements Room temperature: 15-30 Celsius, humidity: below 85%

V-780 UV-Vis Spectrophotometer Specifications

Optical System Czerny-Turner mount
Single monochromator
Fully symmetrical double beam type
Light Source Halogen lamp, Deuterium lamp
Wavelength range 190 to 1600 nm
Wavelength accuracy +/-0.3 nm (at 656.1 nm)
+/-1.0 nm (at 1312.2 nm)
Wavelength repeatability +/-0.05 nm (UV-Vis), +/-0.1 nm (NIR)
Spectral bandwidth (SBW) UV-Vis:
0.1, 0.2, 0.5, 1, 2, 5, 10 nm
L2, L5, L10 nm (low stray light mode)
M1, M2 nm (micro cell mode)
NIR:
0.2, 0.4, 0.5, 1, 2, 4, 10, 20,
L4, L10, L20 nm (low stray light mode)
M2, M4 nm (micro cell mode)
Stray light 1 % (198 nm KCL 12 g/L aqueous solution)
0.005 % (220 nm NaI 10 g/L aqueous solution
0.005 % (340 nm NaNO2 50 g/L aqueous solution)
0.005 % (370 nm NaNO2 50 g/L aqueous solution)
SBW: L2nm

0.04 % (1420 nm: H2O)
SBW: L4 nm

Photometric range UV-Vis: -4~4 Abs
NIR: -3~3 Abs
Photometric accuracy +/-0.0015 Abs (0 to 0.5 Abs)
+/-0.0025 Abs (0.5 to 1 Abs)
+/-0.3 %T Tested
with NIST SRM 930D
Photometric repeatability +/-0.0005 Abs (0 to 0.5 Abs)
+/-0.0005 Abs (0.5 to 1 Abs)
Tested with NIST SRM 930D
Scanning speed 10~4000 nm/min (8000 nm/min in preview mode)
Slew speed UV-Vis: 12000 nm/min
NIR: 24000 nm/min
RMS noise 0.00003 Abs
(0 Abs, wavelength: 500 nm, measurement time: 60 sec, SBW:2 nm)
Baseline stability 0.0003 Abs/hour
0.04 % (220 nm NaI 10 g/L aqueous solution)
0.02 % (340 nm NaNO2 50 g/L aqueous solution)
0.02 % (370 nm NaNO2 50 g/L aqueous solution)
(10 mm cell)
Baseline Stability ±0.0004 Abs/hour
(Value obtained more than two hours after turning on the light source,
when the room temperature is stabilized, wavelength: 250 nm,
response: slow and SBW: 2nm.)
Baseline flatness +/-0.0002 Abs (200 - 1600 nm)
Detector Photomultiplier tube, Peltier cooled InGaAs photodiode
Standard facilities IQ accessories, Start button, Analog output
Standard program Abs/%T Meter, Quantitative Analysis, Spectrum Measurement, Time Course Measurement, Fixed-Wavelength Measurement, Validation, Daily Maintenance, Macro command (only for iRM), Dual Wavelength Time Course Measurement (only for PC
Dimensions and weight 460(W) x 602(D) x 268(H) mm, 29 kg
Power requirements 150 VA
Installation requirements Room temperature: 15-30 Celsius, humidity: below 85%

Accessories

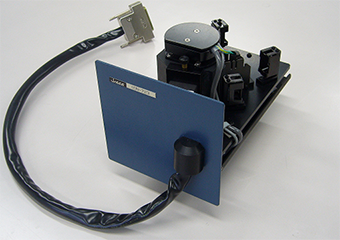

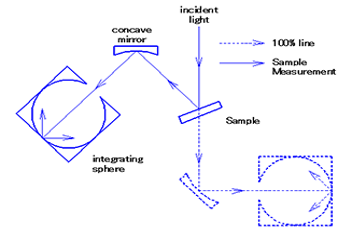

Integrating spheres for the V-700 UV-Vis/NIR spectrophotometers

Integrating spheres are designed to measure either the diffuse transmittance or diffuse reflectance spectra of a liquid, solid or powder sample.

ISV-922/ISN-923/ISN-901i/ILV-924/ILN-925/ILN-902i/PIV-756/PIN-757/PIN-903i/IJV-726/IJN-727/IJN-904i/HISV-728/HISN-729 integrating sphere accessories

For standard measurements, UV-Vis or UV-Vis/NIR spectrophotometers measure the transmittance of a homogeneous, transparent liquid or solid sample. However, when a suspended liquid sample or opaque solid or powder sample is measured, the light incident upon the sample is diffusely transmitted or reflected and only a small portion of the scattered light reaches the detector, resulting in an inaccurate measurement. The integrating sphere accessory acquires most of the light diffusely transmitted or diffusely reflected from the sample into the integrating sphere and introduces it to the detector(s), providing a more representative measurement of the diffuse sample. JASCO integrating spheres have been designed for a variety of application and sampling requirements.

ISV-922 60 mm Integrating sphere for V-750/760
ISN-923 60 mm Integrating sphere for V-770
ISN-901i 60 mm Integrating sphere for V-780

The Model ISV-922/ISN-923/ISN-901i accessories are 60 mm integrating spheres with a smaller footprint to fit directly into the V-700 instrument sample compartment. These integrating spheres have a smaller sphere area, resulting in an increased signal-to-noise ratio for sample measurements at smaller bandwidth settings. All integrating spheres include a Spectralon reference tile, used for baseline correction of the integrating sphere. In addition, a specular reflectance exclusion sample holder is included as standard as well as a modified sample holder which will include the specular reflectance data with the collected spectrum. The 60 mm spheres have been designed with several different configurations to provide simple sampling methods for powders, solids and other scattering samples.



FCH-002 Fluorescence cut-off filter

A fluorescence cut-off filter permits accurate measurement of the transmittance/reflectance of a sample that also emits fluorescence (commonly, the 450 nm to 650 nm range with excitation near 300 nm). The optional filter is installed inside the sphere, before the internal sphere PMT detector. (Must be ordered with the integrating sphere, installed during manufacture.)

PSH-001 Powder Sample Holder

This optional accessory is used to measure the reflectance of a powdered sample.

Model RLH-603 Reference-Side Rectangular Cell Holder

This optional cell holder is used to install a rectangular cell on the reference side of the integrating sphere
(used as a reference for diffuse transmittance samples).

SSH-506 Solid Sample Holder (specific to 60 mm integrating spheres)

This sample holder is used to measure the transmittance of a solid sample.

Sample size:

Minimum 20 (H) x 20 (W) x 0.5 (D) mm
Maximum 70 (H) x 40 (W) x 35 (D) mm

60 mm Integrating Sphere specifications

Wavelength range

200 to 900 nm (ISV-922)
200 to 2500 nm (ISN-923)
200 to 1600 nm (ISN-901i)

Spectral bandwidth

UV 5 nm
NIR 20 nm

Sample cell (Transmittance measurement)

Light path length 5, 10, 20, 30, 50 mm rectangular cell (sample side)

Sample size (Reflectance measurement)

Minimum 20 (Height) x 20 (Width) x 0.5 (Thickness) mm
Maximum 65 (Height) x 50 (Width) x 25 (Thickness) mm

Beam

Approx. 7 (Height) x 4 (Width) mm at the position of the transmittance sample
(when spectral bandwidth is UV 5 nm and NIR 20 nm)

Approx. 8 (Height) x 9 (Width) mm at the position of the reflectance sample
(when spectral bandwidth is UV 5 nm and NIR 20 nm)

Inside diameter of integrating sphere

60 mm

Interior of integrating sphere

Coated with barium sulfate

Detector

Photomultiplier tube (ISV-922/ISN-923/ISN-901i)
PbS photoconductive cell (ISN-923)
InGaAs Photodiode detector (ISN-901i)



ILV-924 150 mm Integrating sphere for V-750/760
ILN-925 150 mm Integrating sphere for V-770
ILN-902i 150 mm Integrating sphere for V-780

The Model ILV-924/ILN-925/ILN-902i accessories are 150 mm integrating spheres with a larger sampling area and fixtures for larger samples, with features for diffuse transmittance and diffuse reflectance measurements. The 150 mm spheres include an integrated light trap for exclusion of specular reflectance components from the sample. Spectralon reference tiles are included for baseline correction of the spectral data collected using the sphere. The larger sphere diameter corresponds to many international standards that require the larger sphere area, as compared to the 60 mm integrating spheres. Although the 150 mm sphere may have slightly lower signal-to-noise performance, the larger area vs. the ‘cutouts’ for the source entrances and sample area ports provides a greater integration capability for sample reflectance experiments.



Portable Integrating Sphere Specifications

Wavelength range

200 to 900 nm (Model ILV-924)
200 to 2500 nm (Model ILN-925)
200 to 1600 nm (Model ILN-902i)

Spectral bandwidth

UV 5 nm
NIR 20 nm

Sample cell (Transmittance measurement)

Light path length 5, 10, 20, 30, 50 mm rectangular cell (sample side)

Sample size (Reflectance measurement)

Minimum 20 (Height) x 20 (Width) x 0.5 (Thickness) mm
Maximum 100 (Height) x 50 (Width) x 30 (Thickness) mm

Beam

Approx. 9 (Height) x 5.5 (Width) mm at the position of the
transmittance sample (slitwidth: UV 5 nm and NIR 20 nm)

Approx. 13 (Height) x 6 (Width) mm at the position of the reflectance
sample (slitwidth: UV 5 nm and NIR 20 nm)

Inside diameter of integrating sphere

150 mm

Interior of integrating sphere

Coated with barium sulfate

Detector

Photomultiplier tube (Model ILV-924/ILN-925/ILN-902i)
PbS photoconductive cell (Model ILN-925)
InGaAs photodiode detector (Model ILN-902i)



SSH-507 Solid Sample Holder (specific to 150 mm integrating spheres)

This sample holder is used to measure the transmittance of a solid sample.

Sample size:

Minimum 20 (H) x 20 (W) x 0.5 (D) mm
Maximum 70 (H) x 40 (W) x 35 (D) mm

PIV-756 60 mm Integrating sphere for V-750/760
PIN-757 60 mm Integrating sphere for V-770
PIN-903i 60 mm Integrating sphere for V-780

Integrating spheres for horizontal sampling, models PIV-756/PIN-757/PIN-903i, can mount the sample horizontally in a cup below the integrating sphere, ideal for powder samples. This integrating sphere can also be modified to provide measurements of smaller sample sizes by using a lens above the sphere, focusing the source energy onto the sample below the sphere. Diffuse transmittance measurements are performed by placing the sample on the upper surface of the integrating sphere.

IJV-726 60 mm Integrating sphere for V-750/760
IJN-727 60 mm Integrating sphere for V-770
IJN-904i 60 mm Integrating sphere for V-780

Models IJV-726/IJN-727/IJN-904i are dedicated integrating spheres to measure small samples such as gemstones. The accessory is based on a standard 60 mm integrating sphere with a ‘mask’ to provide a smaller illumination area for reflectance samples. A number of small fixtures are provided for mounting of gemstones, pearls and mounted stones within rings and other jewelry for analysis purposes.

HISV-728 60 mm Portable integrating sphere for V-750/760
HISN-729 60 mm Portable integrating sphere for V-770/780

This integrating sphere using an optical fiber can measure the diffuse reflection of various solid samples, such as pastes, clothing materials and food products.



Portable Integrating Sphere Specifications

Wavelength range

250 to 800 nm (Model HISV-728)
200 to 2500 nm (Model HISN-729)

Spectral bandwidth

UV 10 nm
NIR 20 nm

Sample size

Minimum 30 (Height) x 30 (Width)

Inside diameter of integrating sphere

60 mm

Interior of integrating sphere

Coated with barium sulfate

Detector

Accessories

Ambient Accessories for V-700 Series UV-visible and Near infrared NIR spectrophotometers

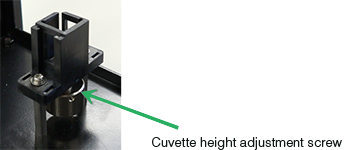

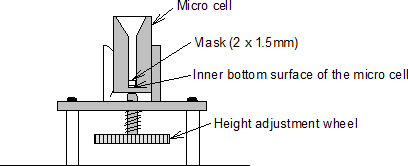

UCB-710 Rectangular cell Holder with cuvette height adjustment

  • Suitable for cuvettes sizes down to 2 mm width x variable path length up to 10 mm (minimum sample volume of 240 µL)
  • 1.5 mm (W) x 3 mm (H) mask included as standard

LSE-701 Single position long path length cell holder

LSE-701 single position long-path cell holder for sample measurements using long light path rectangular cells (maximum: 100 mm). Typical pathlengths include 10 mm, 20 mm, 50 mm or 100 mm. A cell of the same pathlength can also be placed on the reference side.

FSE-702 manual 4-position long path length cell changer

FSE-702 manual 4-position Long-Path Cell Holder for sample measurements using long path rectangular cells (maximum: 100 mm). Typical path lengths include 10 mm, 20 mm, 50 mm or 100 mm. A cell of the same pathlength can also be used for the reference side.

SSE-704 6-position manual cell holder

SSE-704 6-position manual cell holder for up to 6 sample cell positions. The cell changer is manually operated and can be used with cell sizes of 5 mm, 10 mm or 20 mm. A cell of the same pathlength can also be used for the reference side.

CYH-708 Cylindrical cell holder

CYH-708 cylindrical cell holder for sample measurement using cylindrical cells (Diameter: 22 or 30 mm; maximum path length: 100 mm)

NCP-705 specifications

Sample movement

Linear

Cell type

10-mm rectangular cell, Micro Cell (min. sample width 2 mm)

Reference cell holder

Single-cell holder

Dimensions

130 (W) x 255 (D) x 123 (H) mm

Weight

Accessories

Absolute reflectance measurement for V-700 Series UV-visible and Near infrared NIR spectrophotometers

The absolute reflectance measurement system for the V-700 series UV-visible-NIR spectrophotometers is used to perform the measurement of the spectral properties, film thickness, angle variation or other characteristics of solid samples such as semiconductors, thin films and various optical elements.

ARV-913/ARN-914/ARN-915i/ARSV-916/ARSN-917/ARSN-918i/ARMV-919/ARMN-920/ARMN-921i

The absolute reflectance measurement accessories are designed to measure the absolute reflectance of a specular reflecting sample (metals or other materials) while varying the incidence angle (all models). The ARSV-916, ARSN-917, ARSN-918i, ARMV-919, ARMN-920 and ARMN-921i accessories also permit the transmittance measurement of a sample (without diffuse transmittance), while varying the incidence angle. Absolute reflectance and transmittance are measured by rotating the sample stage to determine the angle of the light incident to the sample and setting the detector in the path of the reflected light or the transmitted light through the sample.

Diffuse reflectance measurements can be obtained by mounting the sample at the rear of the integrating sphere with an incidence angle of 0º. Diffuse transmittance measurements can also be obtained by mounting the sample at the entrance of the integrating sphere with the sample holder at an incidence angle of 0º.

Effect of polarization when measuring absolute reflectance

Light from a spectrophotometer that employs a grating is always polarized. The ratio of the intensities of the S and P polarized light varies according to the wavelength and also differs from one grating to another for the same wavelength. The greater the angle of incidence of the beam on the sample, the greater the difference in the intensity of the S and P polarized reflected light making measurement inaccurate if the absolute reflectance is measured at a high angle of incidence. In this case, a polarizer can be set to 45 degrees so that the incident light can be considered non-polarized.

Range of Absolute Reflectance Measurement Accessories

Manual Measurement

ARV-913 Synchronous Absolute reflectance measurement accessory (UV-Vis). For use with V-750 and V-760

ARN-914 Synchronous Absolute reflectance measurement accessory (UV-Vis/NIR). For use with V-770 only

ARN-915i Synchronous Absolute reflectance measurement accessory (UV-Vis/NIR). For use with V-780 only



Reflectance measurement only
The incidence and collection angles are maintained with the same ‘synchronous’ angle by simultaneously rotating the sample stage and integrating sphere.



The ARV-913, ARN-914 and ARN-715i measure the absolute reflectance of a specular reflecting sample (metals, etc.) or the relative reflectance of a diffusely reflecting sample. It also permits the measurement of transmittance by using an optional solid sample holder for transmittance measurements. This attachment includes an integrating sphere with integrated detector(s). The angle of incidence of the sample is changed by moving the integrating sphere (in the measurement of absolute reflectance). The movable angular range of the integrating sphere is 5°to 90°(angle of incidence). The relative reflectance is measured by mounting the sample on the rear of the integrating sphere.

ARSV-916 Asynchronous Absolute reflectance measurement accessory (UV-Vis) For use with V-750 and V-760

ARSN-917 Asynchronous Absolute reflectance measurement accessory (UV-Vis/NIR) For use with V-770

ARSN-918i Asynchronous Absolute reflectance measurement accessory (UV-Vis/NIR) For use with V-780

Reflectance and transmittance measurement
The incidence and collection angles can be set independently in an asynchronous mode.



The ARSV-916, ARSN-917 and ARSN-918i manual absolute reflectance measurement accessories measure the absolute reflectance of a reflective sample or transmittance of a clear sample that does not diffuse light. The detector(s) is(are) equipped with an integrating sphere and also permits measurement of the relative reflectance and transmittance of samples that diffuse light (the sample holder for measurement of relative reflectance is standard, the sample holder for transmittance measurement is optional). Absolute reflectance and transmittance are measured by rotating the sample stage to determine the angle of the light incident upon the sample and setting the detector in the path of the reflected or transmitted light. The relative reflectance is measured with light normally incident to the sample, which is set behind the integrating sphere.

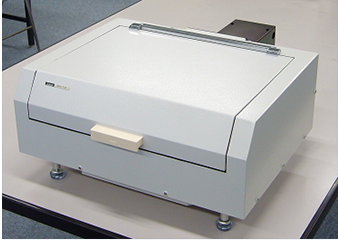

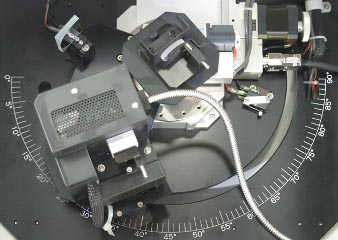

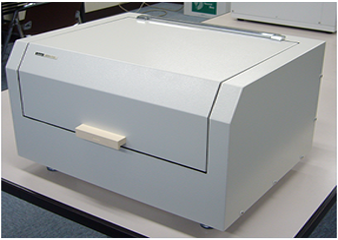

Automated measurement system

ARMV-919 Automated absolute reflectance measurement accessory (UV/VIS) For use with V-750 and V-760

ARMN-920 Automated absolute reflectance measurement accessory (UV/VIS/NIR) For use with V-770

ARMN-921i Automated absolute reflectance measurement accessory (UV/VIS/NIR) For use with V-780

Reflectance and transmittance measurement
The incidence and collection angles can be set independently in asynchronous mode.



The ARMV-919, ARMN-920 and ARMN-921i absolute reflectance measurement systems automate the measurement of spectral properties, including film thickness, angle variation or other characteristics of solid samples such as semiconductors, thin films and various optical elements. The incidence and collection angles can be set in a synchronous mode, simultaneously rotating the sample stage and integrating sphere. Alternatively, the incidence and collection angles can be set independently in asynchronous mode. The polarization properties of a sample can also be examined using P or S polarization or by setting the desired polarization angles.

Absolute Reflectance optical layout

Absolute Reflectance Measurement Accessories

Optional accessories

SSH-508 Solid Sample Holder

This attachment is used to measure the transmittance of a sample that diffuses light.

Sample size :

Min 30 mm (H) x 30 mm (W) x 0.5 mm (D)

Max 70 mm (H) x 80 mm (W) x 10 mm (D)



ARG-476/GPH-506 Polarizers

The light from a grating type spectrophotometer is always polarized. The ratio of the intensities of the S and P polarized light varies according to the wavelength and also differs from one grating to another for the same wavelength. The greater the angle of incidence of the beam on the sample, the greater the difference in the intensity of the S and P polarized reflected light, making measurements inaccurate if the absolute reflectance is measured at a high angle of incidence. In this case, a polarizer is required to accurately measure the absolute reflectance when the angle of incidence is 30° or greater.

Wavelength range:

250-750 nm(Model ARV-913)

250-2000 nm(Model ARN-914)

250-1600 nm(Model ARN-915i)



Rotation of plane of polarization:

0°(linearly polarized light in vertical
direction) to 90°(linearly polarized light
in horizontal direction)



Optional accessories continued

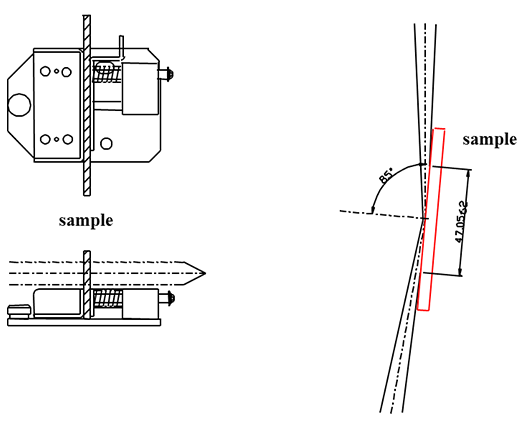

Wide incident angle sample holder (up to 85º)

6708-H163A for manual type

6708-H460A for automated type

PDU-755 Phase difference measurement unit (Polarizer with measurement software)

Accessories

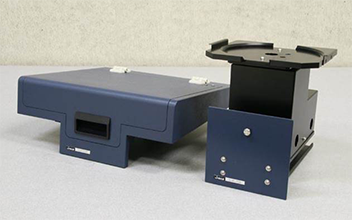

Specular Reflectance Accessories

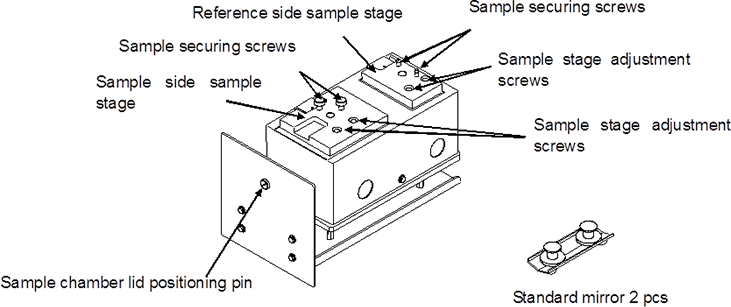

SLM-907 Specular reflectance accessory for V-700

The SLM-907 specular reflectance accessory measures the relative reflectance of a sample in comparison with the reflected light from an aluminum-deposited plane mirror as a reference. This accessory is used for the reflectance measurement of sample types such as: metal-deposited films, metal plating, and other thin films. Film thickness can be calculated using the optional film thickness analysis program.



Specular Reflectance Accessory Specifications

Wavelength range

250 to 1000 nm (V-730 UV/VIS spectrophotometer)
200 to 900 nm (V-750/760 UV/VIS spectrophotometer)
200 to 2700 nm (V-770 UV/VIS/NIR spectrophotometer)
200 to 1600 nm (V-780 UV-Vis/NIR spectrophotometer)

Sample size

Sample

Minimum 10 x 10 mm
Maximum 100 x 120 mm

Reference

Minimum 10 x 10 mm
Maximum 20 x 20 mm

Beam port diameter

7 mm (4 mm, 2 mm as option)

Angle of Incidence

Approx. 5°

Reflection reference

Aluminum-deposited plane mirror (Standard mirror)

Optional accessories:

  • Polarizer (GPH-506)
  • Application program (Film thickness calculation program, etc.)
  • Sample stage with 2-mm-dia. port
  • Sample stage with 4-mm-dia. port

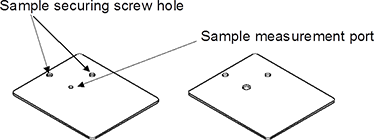

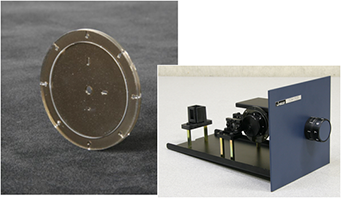

MSK-001 Sample stage with 2-mm-dia. port

MSK-002 Sample stage with 4-mm-dia. port



MSK-001 Sample stage with 2-mm-dia.port

MSK-002 Sample stage with 4-mm-dia.port

Diameter of port:
Sample Size:

2mm
Minimum 3x3 mm
Maximum 50x50 mm

Diameter of port:
Sample size:

4mm
Minimum 5x5 mm

Maximum 50x50 mm



SLM-908 Specular reflectance accessory for V-750/760/770/780 (for 6-inch Silicon Wafers)

Accessories

STR-773 Water thermostatted cell holder with stirrer

The STR-773 Water thermostatted cell holder with stirrer is used with a temperature controlled circulating water bath (not supplied) to maintain a constant sample and reference cell temperature.

The STR-773 accepts standard 10 mm path length cells. A magnetic stirrer is included to maintain temperature equilibrium in both cell positions.

Specifications


Cell
10-mm cell
Operating temperature
Room temperature plus 10°C to 90°C
Circulating water inlet tube
Uni-tube (⌽6 x ⌽3 mm)



NCP-706 specifications

Sample movement

Linear

Cell type

10-mm rectangular cell, Micro Cell (min. sample width 2 mm)

Thermostatic method

Circulation of constant temperature water

Operating temperature

Room temperature plus 10° -90°C

Reference cell holder

Constant temperature single-cell holder

Dimensions

130 (W) x 255 (D) x 123 (H) mm

Weight

2.5 kg

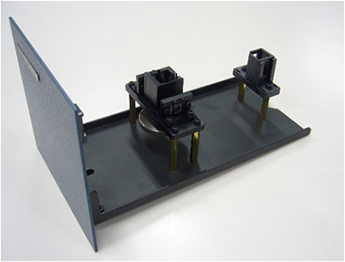

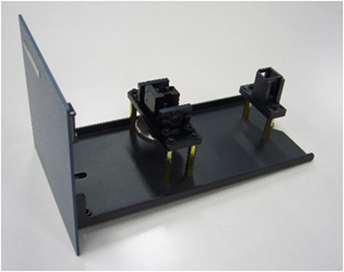

NCP-705 6-position non-thermostatted automatic cell changer NCP-706 Water thermostatted 6-position automatic cell changer

The NCP-705 and NCP-706 6-position automatic cell changers for up to 6 sample positions. The sample position can be selected using software control and can be used with cell path lengths up to 10 mm.

A single cell is used for the reference position for both the NCP-705/706 automatic six cell changers.

The NCP-706 includes temperature control using a water-thermostatted circulator.




CSP-909 Sample Holder Lid with Syringe Port for V-700 models

The optional CSP-909 lid is used for adding a reagent solution with a syringe without having to open the sample chamber when initiating fast reactions. The syringe port lid can be used together with the STR-773, ETHS-760, ETCS-761 or ETCS-762 cell holders.


Recommended syringe
0507-0220 Micro syringe, 10 µL
0507-0246 Micro syringe, 100 µL



HMC-711 Water Thermostatted Micro Cell Holder (100 µL, 200 µL)

The HMC-711 Water Thermostatted Micro Cell Holder is used with a temperature controlled circulating water bath (not supplied) to maintain a constant sample temperature. The cell holder accepts standard 10 mm path length cells with a minimum path width of 2 or 4 mm.

Specifications

Compatible Cell
5 or 10 mm path length square cell
5 or 10 mm path length square micro cell
Operating temperature
Room temperature plus 10°C to 90°C
Circulating water tube
Uni-tube (⌽6 x ⌽3 mm)

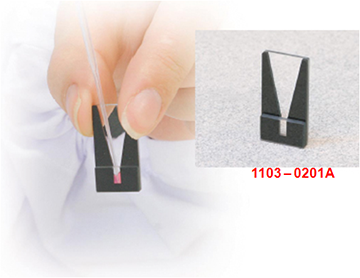

Optional cells

Item P/N Specification
Rectangular micro quartz cell 1103-0025 5 mm path, 2 mm width
Rectangular micro quartz cell 1103-0030 10 mm path, 4 mm width
Rectangular micro quartz cell 1103-0026 10 mm path, 2 mm width
Rectangular micro quartz black cell 1103-0031 10 mm path, 4 mm width
Rectangular micro quartz black cell 1103-0032 10 mm path, 2 mm width

Rectangular micro quartz cell
1103-0026
10 mm path, 2 mm width
100 µL minimum volume

Rectangular micro quartz black cell
1103-0032
10 mm path, 2 mm width
100 µL minimum volume



MHT-745 Manual 4-position water thermostatted turret cell holder

The MHT-745 is used with a temperature controlled circulating water bath. The 4-position turret cell holder can be rotated manually for measurement of up to four samples. Requires four 10x10 mm rectangular cells (not included).

Specifications

Thermostatted cells 10-mm rectangular cell
Sample-side cell holder: 4
Reference side cell holder: 1
Operating temperature Room temperature plus 10 to 90°C
Circulating water inlet Uni-tube (⌽7 x ⌽5 mm)

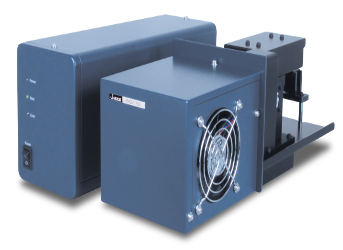

EHCS-760 Peltier thermostatted single position cell holder (air-cooled)

This Peltier cell holder precisely maintains the specified sample temperature. The cell holder includes a stirrer for uniform cell temperature. The EHC-760 cell holder is an air-cooled accessory for temperature control without using a water circulator.



OPS-512 Optional temperature sensor for EHCS-760

OPS-512 OP sensor for direct temperature measurement in the sample cell for both the ETC-760 or EHC-761.



Specifications

Thermostatted Cell 10-mm rectangular cell (sample side)
Temperature control system Heating/cooling system using Peltier effect
Heat radiating system Air cooled
Stirring system Magnetic stirrer (variable speed)
Temperature setting range 5 to 70°C
Temperature control range 10 to 60°C (for room temperature = 20°C)
Temperature control accuracy ± 0.1°C
Temperature accuracy (Difference between displayed temperature and actual cell temperature)
20°C to 40°C ± 0.5°C
± 1°C when set temperature is outside the above range
Temperature setting difference (Difference between set temperature and displayed temperature)
20°C to 40°C ±0.3°C
± 0.5°C when set temperature is outside the above range

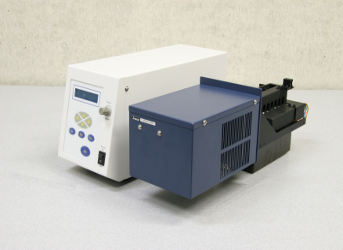

PSC-763 Automatic 6-position Peltier cell changer (air-cooled)

Model PSC-761 multi-cell accessory for simultaneous temperature controlled measurement in up to 6 sample cells. This cell holder uses air-cooled Peltier effect to control sample temperature with high accuracy. Includes a variable speed stirrer for thermal equilibrium for all sample cells.



OPS-513 Optional temperature sensor for PSC-763

OPS-513 OP sensor for direct temperature measurement in the sample cell.

Specifications

Thermostatted Cell Up to six 10 mm rectangular sample cells (ambient reference cell)
Temperature control system Heating/cooling system utilizing Peltier effect
Heat radiating system Forced air cooling
Stirring system Magnetic stirrer (variable speed)
Temperature setting range 10 to 70°C
Temperature control range 15 to 60°C (For room temperature = 20°C)
Temperature control accuracy ±0.1°C
Temperature accuracy (Difference between the displayed temperature and temperature in the cell)
20°C to 40°C ±0.5°C
±1°C when the set temperature is outside the above range
Temperature setting difference (Difference between the set temperature and displayed temperature)
20°C to 40°C ±0.3°C
±0.5°C when the set temperature is outside the above range


Accessories

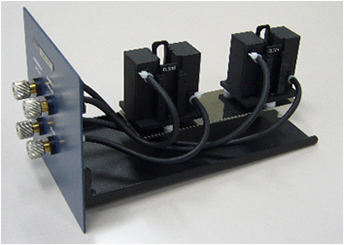

ETCS-761/762 Peltier thermostatted single position cell holder (water-cooled)

These cell holders use the Peltier effect to precisely maintain the sample temperature. The cell holders include a stirrer for uniform cell temperature. The ETCS-761 and ETCS-762 cell holders are water cooled Peltier accessories for a greater temperature range.

OPS-512 Optional temperature sensor for EHCS-760

OPS-512 OP sensor for direct temperature measurement in the sample cell for both the ETCS-761 or ETCS-762.



Specifications


Thermostatted Cell(s)
10-mm rectangular cell (sample side only – ETCS-761)
10-mm rectangular cell (sample/reference – ETCS-762)

Temperature control system
Heating/cooling system using Peltier effect

Heat radiating system
Water cooled

Stirring system
Magnetic stirrer (variable speed)

Temperature setting range
-10 to 110°C

Temperature control range
0 to 100°C (for room temperature = 20°C)

Temperature control accuracy
±0.1°C

Temperature accuracy
(Difference between displayed and actual cell temperature)
20°C to 40°C ± 0.5°C
± 1°C when the set temperature is outside the above range

Temperature setting difference
(Difference between set temperature and displayed temperature)
20°C to 40°C ± 0.3°C
± 0.5°C when the set temperature is outside the above range

ETCS-761

ETCS-762

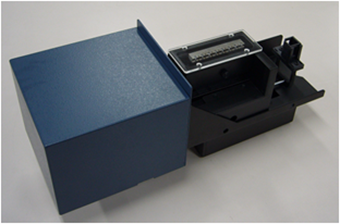

PWC-758 Automatic 8 x 8-position Peltier cell changer (water-cooled)

The PWC-758 is a multi-cell sample holder accessory for the simultaneous measurement of up to eight sample cells and 8 reference cells. The Peltier temperature control allows precise control of the sample temperature. A magnetic stirrer is used to maintain a uniform cell temperature for all 16 cell positions.

Cannot be used with the V-630 or V-730 (including bio versions)



Specifications


Thermostatted cell(s)
Eight 10-mm path length rectangular cells (sample and reference side)

Temperature control system
Heating/cooling system using Peltier effect

Heat radiating system
Water cooled

Stirring system
Magnetic stirrer (with variable speed control)

Temperature setting range
-10 to 110°C

Temperature control range
0 to 100°C (room temperature = 20°C)

Temperature setting precision
±0.3°C

Temperature accuracy
(Difference between displayed and actual cell temperature)
20°C to 40°C ±0.5°C
±1°C when the set temperature is outside the above range

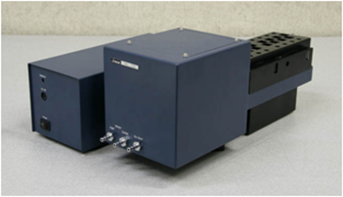

PAC-743R Automatic 6/8-position Peltier Cell Changer (water-cooled and water-cooled with thermostatted reference)

The PAC-743 and PAC-743R automatic 6/8-Position Peltier cell changers are used for temperature controlled transmittance and absorbance measurements with multiple sample cells, with a variable temperature range from 0 to 100ºC.

Three cell block types are available: a 6-position 10 mm cell block, an 8-position micro cell block and an 8-position 5 mm cell block.

Using the 8-position micro cell block up to 8 samples can be simultaneously transferred directly from a 96 micro-titer plate (8x12) using an 8-way micro-pipette.

The PAC-743R also includes a temperature controlled reference position.

Cells for PAC-743/743R

5 mm rectangular
quartz cell

6-position cell block,

8 position cell block

8 position micro –cell block
Micro 8-position micro-cell



Accessories

Precise analysis of micro-volume samples for biological samples

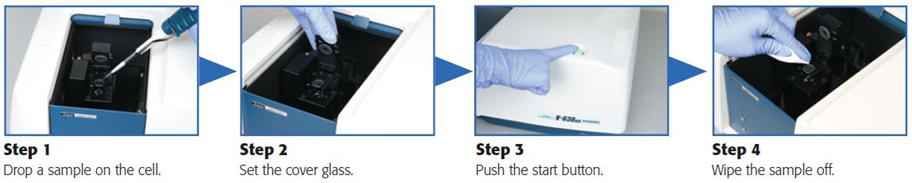

The SAH-769 One Drop is a dedicated accessory for the V-600 and V-700 Series UV-visible spectrophotometers for the measurement of micro-volume samples of protein and nucleic acid. A precise optical pathlength is maintained, assuring excellent measurement reproducibility. The sampling procedure is very quick (around 20 seconds per sample) and easy, by simply placing a droplet of a sample on the disk cell window. The minimum sample volume is 5 µl for the standard 1 mm pathlength disk cell, and 0.6 µL for the optional 0.2 mm pathlength cell. The shorter optical pathlength allows measurements of high concentration samples without dilution.



Rapid, but highly accurate measurement using a flexible V-700 spectrophotometer. Only 20 seconds per sample.

Quantitative analysis of a 0.6 µl sample of calf thymus DNA using a 0.2 mm pathlength disk cell.

Spectra of calf
thymus DNA solutions

Calibration curve of calf thymus DNA

The figure illustrates excellent linearity up to approx.
3000 ng/µL. This is equivalent to a linearity of up
to 35 Abs for a 10 mm pathlength cell.




EMC-709 Micro cell holder

The EMC-709 is a micro cell holder for micro volume cells (approx. 50 µL or smaller). For use with rectangular micro cells with a path length up to 10 mm and a width of 2 mm, minimum.

Compatible Cell
Light path
length
Light path width
Bottom
Thickness
10 mm
2 mm
2.5 mm or less

Recommended Cell
(Optionally available)X
1103-0114A
1103-0194A
1103-0201A
6708-J046A
50 µL Micro cell
5 µL Micro cell (Normal cell)
5 µL Micro cell (Single sided cell)
Spacer for 5 µL Micro cell


50 µL Micro cell

Light path length: 10 mm
Light path width: 2 mm
Sample Volume: 50 µL

P/N: 1103 – 0114A
(Two sides are black quartz)

5 µL Micro cell(Normal type)

Light path length: 1 mm
Light path width: 2 mm
Sample Volume: 5 µL

P/N: 1103 – 0194A

5 µL Micro cell(Single sided type)

Light path length: 1 mm
Light path width: 2 mm
Sample Volume: 5 µL

P/N: 1103 – 0201A

Spacer for 5 µL Micro cell

After inserting a 5 µL Micro
cell into the spacer, it is
placed into the sample holder.

P/N: 6708 – J046A




EMC-759 5 µL Ultra-micro cell holder

The EMC-759 micro cell holder for micro volume cells (approx. 5 µL) can be used for minimal volume samples. Rectangular micro cells with a path length of 1 mm and a width of 2 mm are specified for use with this cell holder, using a lens to focus the light beam into the cell for precise low-volume measurements.

Compatible Cells
Light path
length
Light path width
Bottom
Thickness
1 mm
2 mm
3.5 mm or less
Recommended Cell
(Available as option)
1103-0194A
1103-0201A
5 µL Micro cell (Normal cell)
5 µL Micro cell (Single sided cell)


Due to the optical path the EMC-759 is designed only for use with the V-630 and V-730 UV-Vis instruments (incl. Bio models) For other V-series instruments, please select the EMC-709 cell holder.


Micro Cell (Optional Accessories) No cell spacer required.

5 µL Micro cell (Normal type)

Light path length: 1 mm
Light path width: 2 mm
Sample Volume: 5 µL

P/N: 1103 – 0194A

5 µL Micro cell (Single sided type)

Light path length: 1 mm
Light path width: 2 mm
Sample Volume: 5 µL

P/N:1103 – 0201A




5 µL micro cell (stepped type)

This micro-volume cell (5 µL volume) is designed so that a pipette tip can reach the cell bottom and sample recovery can be easily performed. The dedicated cell holder, model EMC-759, is required to use this cell and the light beam is condensed using a lens integrated into the cell holder. Optimum measurements are obtained by reducing the source beam energy losses due to diffraction.




TCH-703 8-position micro turret cell holder
Minimum sample volume: 4 µL

The TCH-703 turret cell holder is designed for use only with the V-630/V-730 (incl. Bio models). The turret cell holder contains a ‘turret’ with 8 micro cells of 1 mm pathlength with a minimum sample volume of 4 µL each.

The cell position is manually selected with a guaranteed path length for reproducible results.

An optimized optical system reduces source beam energy losses due to diffraction of the incident beam. This optical system provides reproducible measurement of dilute and micro samples.

The turret can be removed for easy cleaning and loading of samples.

Cuvettes & Standards

Part Number Description
1103-0181 Rectangular glass cell 10 x 1 Special optical glass with lid 320 -2500 nm
1103-0182 Rectangular glass cell 10 x 2 Special optical glass with lid 320 -2500 nm
1103-0105 Rectangular glass cell 10 x 5 Special optical glass with lid 320 -2500 nm
1103-0104 Rectangular glass cell 10 x 10 Special optical glass with lid 320 -2500 nm
1103-0103 Rectangular glass cell 10 x 20 Special optical glass with lid 320 -2500 nm
1103-0102 Rectangular glass cell 10 x 50 Special optical glass with lid 320 -2500 nm
1103-0101 Rectangular glass cell 10 x 100 Special optical glass with lid 320 -2500 nm



Part Number Description
1103-0172 Rectangular quartz cell 10 x 1 Spectrosil Quartz with lid 190 -2700 nm
1103-0173 Rectangular quartz cell 10 x 2 Spectrosil Quartz with lid 190 -2700 nm
1103-0009 Rectangular quartz cell 10 x 5 Spectrosil Quartz with lid 190 -2700 nm
1103-0019 Rectangular quartz cell 10 x 10 Spectrosil Quartz with lid 190 -2700 nm
1103-0003 Rectangular quartz cell 10 x 20 Spectrosil Quartz with lid 190 -2700 nm
1103-0035 Rectangular quartz cell 10 x 50 Spectrosil Quartz with lid 190 -2700 nm
1103-0042 Rectangular quartz cell 10 x 100 Spectrosil Quartz with lid 190 -2700 nm



Part Number Description
1103-0025 Micro rectangular quartz cell 2 x 5 Spectrosil Quartz with lid 190 -2700 nm
1103-0037 Micro rectangular quartz cell 2 x 10 Spectrosil Quartz with lid 190 -2700 nm
1103-0030 Semi-micro rectangular quartz cell 4 x 10 Spectrosil Quartz with lid 190 -2700 nm
1103-0032 Micro rectangular quartz black cell 2 x 10 Spectrosil Quartz with lid 190 -2700 nm
1103-0043 Semi-micro rectangular quartz black cell 4 x 10 Spectrosil Quartz with lid 190 -2700 nm
1103-W013 Micro rectangular glass cell 2 x 5 Special optical glass with lid 320 -2500 nm
1106-0015 Micro short rectangular quartz black cell 2 x 10 Spectrosil Quartz with lid 190 -2700 nm


Australia

Learn more ›

New Zealand

Learn more ›

Australia Freephone

1800 00 84 53

sales.au@bio-strategy.com



New Zealand Freephone

0800 34 24 66

sales.nz@bio-strategy.com



Bio-Strategy PTY Limited

MELBOURNE (HQ)

8 – 10 Trade Park Drive

Tullamarine, VIC 3043

Australia



BRISBANE

2/7 Miller Street

Murarrie, QLD 4172

Australia



Bio-Strategy Limited

33 Westpoint Drive

Hobsonville

Auckland 0618

New Zealand

Advanced Analytical Solutions For Your Science

Electromag-01

Copyright © 2023 Bio-Strategy Limited. Terms & Conditions

Scroll To Top
