RMP-510 Portable Raman Spectrometer
The RMP-510 portable Raman micro-spectrometer has been developed to meet the needs of Material Science, Manufacturing and Biochemistry offering a portable, high quality optical bench which can be fully customized for use with fiber-optic probes or an optional microscope with spatial resolution down to 20 µm.
Features
Although the RMP-510 is described as a portable Raman spectrometer, this is largely due to its robust optical design and tolerance to being transported. In fact the optical performance is close to that of a conventional bench top Raman system and offers many of the same features like interchangeable grating monochromators for a range of spectral resolutions.
Spectra Manager Software simplifies data collection and analysis. Sadtler KnowItAll ™ software is included for library searching and sample database creation.
Installation and training are included.
System Features
Quality & Portability
The RMP-510 is designed to provide laboratory quality data in a portable system. A small, portable, high-resolution Raman instrument.
Validation
Validation software is included with the system.
Fiber Optic Interface
Fiber Optic interface allows for remote and reaction monitoring.
Microscopic Evaluation
Manual stage with camera for microscopic evaluation.
Spectra Manager II Cross-Platform Software
Spectra Manager II software operation included.
Specifications
| Monochromator | Monocromator/Spectrograph | Czerny-Turner type monochromator/f=200 mm |
| Wavelength Control | High accuracy rotary encoder Direct Drive | |
| Wavelength Range(Raman Shift) | 100 - 8000 cm-1 | |
| Resolution (cm-1/pixel) | 2.0 (standard) | |
| Grating (standard) | 900 gr/mm | |
| Optional gratings | 2400, 1800, 1200, 600, 400, 300, 150 gr/mm (automated selection) | |
| Number of gratings | Maximum 4 gratings on automated carousel | |
| Detector | Element | 1650 x 200 (Andor BR246D CCD) |
| Cooling Method | 4-stage Peltier (-60° C) | |
| Light Source | Laser wavelength | 532 nm |
| Laser power | 20 mW | |
| Attenuator | Manual: OPEN, OD4, OD1, OD0.3, CLOSED | |
| Fiber Probe | Image magnification | Long Distance Objective: 20X (Option: 50X, 100X) |
| Beam Diameter | 20 µm (20X objective) | |
| Fiber | Single core, 1 m (Option: 3 m, 5 m, 10 m) | |
| Sample observation | CCD video camera | |
| Observation magnification | 250X (with 15 inch monitor, 20X objective, resoluton 1024 x 768) | |
| Probe Stage | XYZ manual stage | X, Y +/- 4 mm, Z +/- 1.5 mm |
| Stage size | 50 mm diameter | |
| Laser safety | Class 1; interlock system | |
| Software | Operating System | Windows 7 Professional (32-bit only) |
| Standard software functions | Spectrum Measurement/analysis, Jasco Canvas, Validation | |
| Database Search function | Sadtler Know-It-All search (Spectrum search, structure search, User database, 600 compound standard database, AnalyzeIt (spectral interpretation) | |
| Optional program | Interval Measurement Analysis | |
| Dimension/Weight |
500 (W) x 360 (D) x 290 (H), 30 kg |
|
Applications

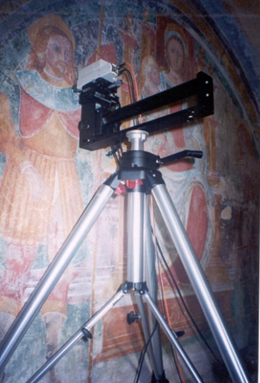

Measure large or physically constrained samples
|

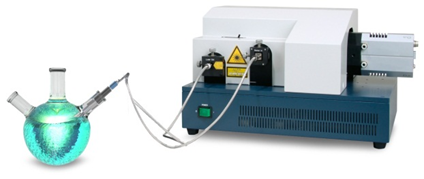

The RMP-510 can be used for non-destructivemeasurement of large and immobile samples with extremely high accuracy and resolution, for example: artworks, contamination in auto engines, reaction monitoring in vessels, etc.
|
 |

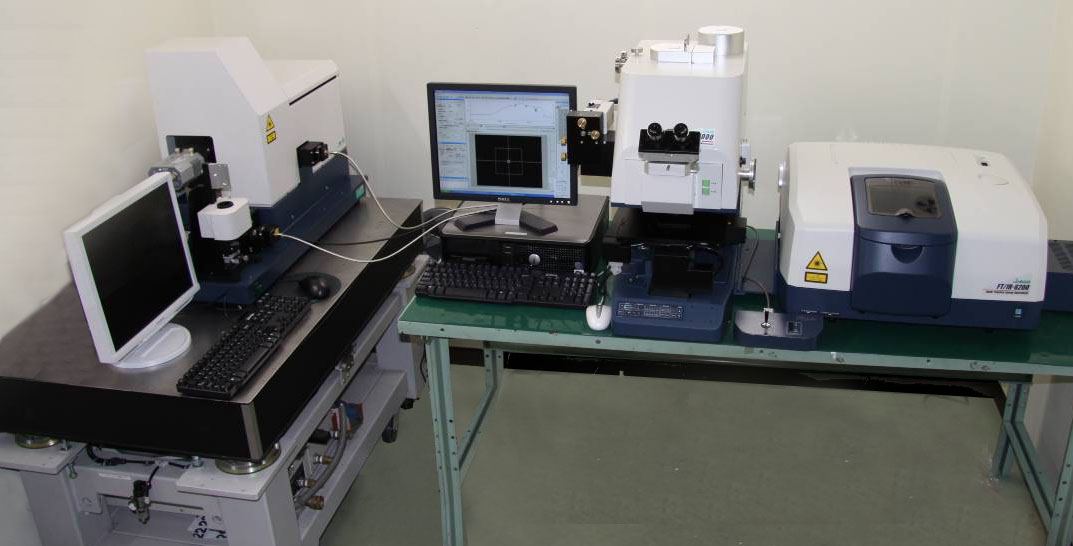

Combined simultaneous IR/Raman microscope system
| By combining both IR and Raman measurement into one system it is possible to make simultaneous measurements without moving the sample; this is particularly useful for samples that require significant preparation or take time to mount on the sample stage (for example, when using a diamond anvil cell etc.). The Raman laser light is routed through the FTIR microscope objective to make the simultaneous measurement. Spectral data can be combined in Spectra Manager II for 2D correlation analysis. |  |
Optional sample compartment for a heating or cooling stage
|
To maintain samples under optimal conditions, we offer optional customized sample compartments to meet your specific requirements (for example, heating/cooling stage, nitrogen gas purge case etc.) |
 |
