IRT-7000 Microscope

IRT-7000 FTIR Linear Array Imaging Microscope

With fast 16 element MCT detector and IQ Mapping - for the fastest sample imaging.

irt-7000-microscope

FTIR Linear Array Imaging Microscope

The IRT-7000  is a very fast FTIR Linear Array Imaging Microscope that can be interfaced with a FT/IR-6000 Series spectrometer, offering the most advanced microscopy and imaging system. The 16 element MCT offers faster response with excellent signal to noise and wider wavelength range than a focal plane array detector. The data processing is done using fast on-board computing so that there is no delay in data being delivered to the imaging software. This make this linear array microscope very fast and accurate.

System Description

The IRT-7000 includes up to two detectors as standard; a 16-channel linear array detector for infrared sample imaging and a single-point MCT detector. The combination of the standard automatic sample stage and IQ Mapping offers high-speed mapping analyses over a very large sample area, multi-area ATR mapping, and IR imaging with spatial resolution close to the diffraction limit with excellent sensitivity in a short time. In combination with the FT/IR-6000 with Rapid Scan or Step Scan options, this system offers advanced dynamic imaging as well as time-resolved measurements. For multivariate analysis, Principal Component Analysis (PCA) is included as standard.

Features

System Features

  • IQ Mapping for advanced mapping experiments
  • Rapid IR Imaging experiments
  • Up to four objectives and automated switching
  • Exceptional visual observation quality
  • Wide area mapping and multi-ATR imaging
  • Dynamic Imaging with FT-IR step-scan option
  • Multivariate analysis PCA (Principal Component Analysis).


IRT-7100: Fully Automated FT-IR Microscope

Automatic sample storage Mid-band MCT detector

The IRT-7100 fully automated FT-IR microscope includes a standard mid-band MCT detector, with an option to simultaneously install up to two detectors. It is easily field-upgradable to an IR imaging system by adding an optional linear array detector. The standard automatic sample stage provides wide area mapping and multi-ATR mapping by combining the "IQ Mapping" function with the XYZ auto-stage.

Fully automated sample storage with auto focus function as standard

  • IQ Mapping
  • Up to four objectives
  • Dual detector capability
  • Field upgrade to IR Imaging System using a linear array detector


IRT-7200: Multi-channel FT-IR Microscope

Automatic sample storage, Mid-band MCT detector and linear array detector

The IRT-7200 FT-IR multi-channel microscope offers two detectors as standard, a 16-channel linear array detector and a single-point mid-band MCT detector. The combination of the standard automatic sample stage and "IQ Mapping" function allows mapping analyses of a larger sample area, multi-are ATR mapping, and IR imaging of a specified area with extremely high spatial resolution and excellent sensitivity in a short time.

  • Full IR Imaging function
  • IQ Mapping
  • Up to four objectives
  • Wide area mapping and multi-ATR imaging
  • Dynamic Imaging with FT-IR step-scan option
  • Multivariate analysis PCS (Principal Component Analysis) as standard


Spectra Manager Imaging Suite – Micro Analysis Measurement Program

Spectra Manager™ provides automatic functions and simplified operation to minimize manual operation. Measurement conditions, microscope sample monitoring/control and measurement results can be viewed on a single screen. The microscope control  interface includes various types of measurements such as single and multi-point, mapping, and linear array measurements using a single mouse-click for mode selection. Real time monitoring of the spectrum and a calculated chemical image can be specified during the mapping measurement.



Innovative ATR Mapping

The "Clear-View" ATR objectives enable a simultaneous sample view even during ATR data collection after the ATR crystal element contacts the sample. The IQ Mapping function enables automated multi-point mapping, line mapping, grid mapping and IR Imaging analyses of a microscopic area with a manual sample stage and a single element detector.

IQ Mapping coupled with a "Clear-View" ATR objective allows ATR mapping and ATR Imaging of any sample in contact with the ATR objective without moving the sample stage or ATR objective, while observing the entire area of the sample that is in contact with the crystal element. This function provides high-speed and cross-contaminant free measurements of a small sampling area.

Full-vacuum System

For FT-IR measurement, absorption peaks due to atmospheric water vapor and CO2 can make it difficult to obtain high quality sample spectra. The most effective solution to this problem is the measurement of samples in vacuum. As a factory option, a vacuum type FT-IR microscope system can be provided.



Details

Standard Composition

Standard Set-up

Description Quantity
IRT-7000 Microscope
including
- Objective cassegrain (16× and 32×)
- Condenser cassegrain (16× and 32×)
- Linear array MCT detector (1 × 16 element)
- Mid-band MCT detector (single element)
- CMOS camera
- XYZ auto-stage
1 set
Spectra Manager installation disk 1 pc.
Instruction Manual 1 copy
Sample plate 1 pc.
Micro-sampling kit
consisting of
- Micro sampling knife S-type
- Micro sampling knife H-type
- Micro-needle for sample manipulation
- Tweezers for micro sampling
1 set

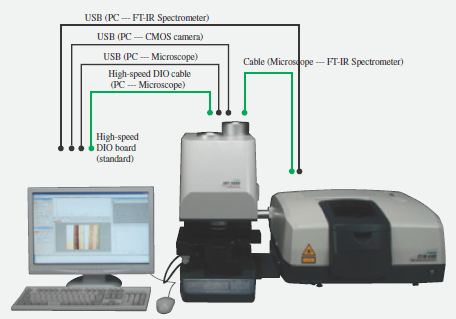

High-speed DIO board for PC and cable 1 set
USB cable 2 pcs.
Cable between FT-IR and IR microscope 1 pc.
Connection plate between FT-IR and IR microscope 1 pc.
Connection pipe (for light path) between FT-IR and IR microscope 1 pc.
Spare fuses 2 pcs.
AC cable 1 set
Funnel 1 pc.
Lid for MCT dewar 2 pc.
Pipette 1 pc.

FTIR Microscope Specifications

Principle FT-IR microscope with cassegrain optical system
Measurement Method Transmittance / Reflectance measurement
Standard Detector IRT-5100: DLATGS detector (7800-400 cm -1)
IRT-5200 & IRT-7100: Single mid-band MCT (7800-600 cm -1)
IRT-7200: Linear array MCT (7000-650 cm -1 x 16 element)
Single mid-band MCT (7800-600 cm)-1
Detector exchange Dual detector capability (software controlled), user exchangeable single element detectors are available as an option.
• Optional Detectors Single element detector (IRT-5100):
- Narrow-band: MCT (5000-750 cm-1)
- Mid-band: MCT (7800-600 cm-1)
- Wide-band: MCT (7800-450 cm-1)
- InSb: (15000-1850 cm-1)
- InGaAs detector: (12000-4000 cm-1)

Single element detector (IRT-5200, IRT-7100, & IRT-7200):
- Narrow-band: MCT (5000-750 cm-1)
- Wide-band: MCT (7800-450 cm-1)
- DLATGS: (7800-400 cm-1)
- InSb: (15000-1850 cm-1)
- InGaAs detector: (12000-4000 cm-1)

Linear array detector (IRT-5200, IRT-7100):
- MCT (7000-650 cm-1), 1 x 16 element
- MCT (7000-650 cm-1), 2 x 16 element
- InSb (10000-1900 cm-1), 1 x 16 element
- InGaAs (10000-5000 cm-1) , 1 x 16 element

Linear array detector (IRT-7200):
- MCT (7000-650 cm-1), 2 x 16 element
- InSb (10000-1900 cm-1), 1 x 16 element
- InGaAs (10000-5000 cm-1) , 1 x 16 element

S/N Ratio Single element detector (IRT-5100):
- 1000:1 (Aperture size 300 μm2, resolution 4 cm-1, 1 min. acquisition, near 2200 cm-1, p-p)

Single element detector (IRT-5200, IRT-7100, & IRT-7200):
- 8000:1 (Aperture size 100 μm2, resolution 4 cm-1, 1 min. acquisition, near 2200 cm-1, p-p)

Linear array detector (IRT-7200):
- 1500:1 (Aperture size 12.5 μm2, resolution 16 cm-1, 1 min. acquisition, near 2200 cm-1, p-p)

Microscope objectives IRT-5100, IRT-5200, & IRT-7100:
- Cassegrain: 16 x 32 x or 10 x
- Automatic objective recognition function (standard)
- Up to four objectives can be selected by the software.

IRT-7200:
- Cassegrain: 16 x 32 x as standard, 10 x as option
- Automatic objective recognition function (standard)
- Up to four objectives can be selected by the software.

Condenser mirror IRT-5100, IRT-5200, & IRT-7100:
- Cassegrain: 16 x 32 or 10 x (manual exchange)
- Automatic condenser mirror recognition function (standard)

IRT-7200:
- Cassegrain: 16 x, 32 x as standard (manual exchange), 10 x as option

Condenser mirror compensation Standard auto-compensation function
Aperture PC-controlled vertical horizontal adjustment and angle of rotation
Sample Storage Standard (IRT-5100 & IRT-5200):
- Manual stage with fine adjustment (Movable distance: X: 70, Y: 50, Z: 20 mm)

Standard (IRT-7100 & IRT-7200):
- Auto XYZ stage with auto-focus function (Movable distance: X: 100, Y: 75, Z: 25 mm, 1 μm step)

Option (IRT-5100 & IRT-5200):
- Auto XYZ stage with auto-focus function (Movable distance X: 100, Y: 75, Z: 25 MM, 1 μm step Joystick for auto XYZ stage control)

Option (IRT-7100 & IRT-7200):
- Joystick for auto XYZ stage control

Auto focus Option (IRT-5100 & IRT-5200)
Standard (IRT-7100 & IRT-7200)
IQ Mapping Standard (IRT-7100 & IRT-7200)
Sample Observation High-resolution, 3 Megapixel CMOS camera with a 3X optional zoom function (standard)
IQ Monitor (simultaneous sample measurement and observation) and auto illumination function (standard)
5.7 inch integrated color LCD display (option), Binocular (option)
• Observation Options Visible polarization observation, Differential interference contrast observation, Fluorescence observation
Refractive objectives: 10×, 20×
Microscope Objectives Cassegrain 16× - standard; 10×, 32× - optional
Automatic objective recognition function is standard.
Up to four objectives can be selected by the software.
• ATR Measurement (option) "Clear-View" ATR objective (ATR-5000-SS/SD/SG)*1,
conventional ATR objective (ATR-5000-D/Z/G)*1,
Stage-mounted micro ATR using transmittance light path (ATR-5000-TPZ)
• Grazing Angle Measurement (option) Cassegrain grazing angle objective (RAS-5000)*2
Purge Sample area purge case is optional as an option.
Integrated Control Panel Transmittance/Reflection switching with indicator; detector indicator; objective selection/indicator; open/close and rotation of aperture; auto-compensation of condenser mirror; visible illumination adjustment
Dimension IRT-5100 & IRT-5200:
587 (H) × 302 (W) × 695 (D) mm, 54 kg

IRT-7100 & IRT-7200:
613 (H) × 302 (W) × 695 (D) mm, 56 kg

Power Consumption IRT-5100 & IRT-5200:
AC 100-240 V, 50/60 Hz, max. 60 VA

IRT-7100 & IRT-7200:
AC 100-240 V, 50/60 Hz, max. 75 VA

*1 Pressure sensor (PRS-M-5000, PRS-A-5000) is required.

*2 Infrared polarizer (PL-IR-5000, PL-IR-7000) is required.
