Compact HPLC EXTREMA 4500 Model

4500systems
compactHPLC

EXTREMA 4500 Models is a conventional HPLC that aggregates the technology cultivated with EXTREMA 4000 Models into a compact casing with a width of 15 cm. It is a modular type that allows flexible system construction, and it also has extensibility such as gradient liquid transfer and automatic analysis. An LCD panel is provided on the front side, and it can be controlled by the unit alone. For control and data analysis on PC, you can use ChromNAV Ver.2 of Japan Spectroscopic Chromatography Data System which is excellent in operability.

Space saving of installation area

The EXTREMA 4500 Model is a compact design with a width of 15 cm, making effective use of lab space.

15cmwide4500



Comparison of module size LC 4500 module vs other pumps:



 Flexible system construction

Corresponding to various liquid transfer / injection methods, it is possible to build a system according to the application.
Combined with the conventional EXTREMA module, it supports a wide range of applications.

Flexible system construction

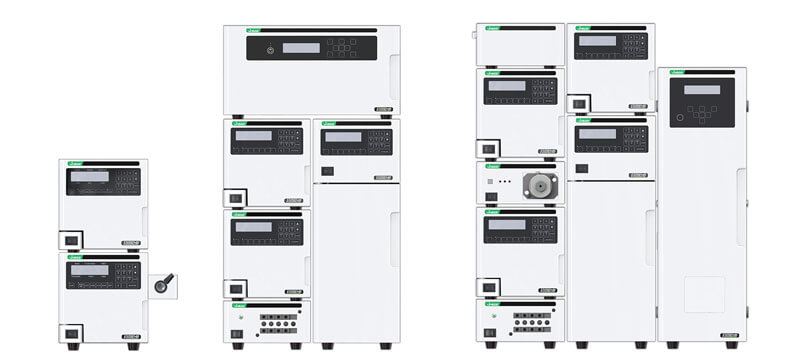

System example Left: PU-UV system, Medium: Automatic injection system, right: High pressure mixing gradient auto injection system



Easy input with numeric keypad

With the operation panel with numeric keypad, operation with module alone can be performed easily.


panel

HPLC pump operation panel

Hardware features



HPLC pump PU-4580

Feed pump which is most suitable for conventional analysis, with various optional units corresponding to a wide range of analysis. With easy replacement of expendable items by front access.

PU-4580

Autosampler AS-4550

Compatible with various injection modes (dilution, pre-column derivatization method). Supports various sample vials, with a sample temperature control unit that can be mounted (4 to 40 ° C: optional)

AS-4550
Optional rack for various containers *
For Eppendorf tubes, 300 μL for vials, 600 μL for vials, For 96-Well microplates.
* Sample temperature control unit compatible type is also available.
SampleRack

50 standard sample racks can be installed with 2.0 mL vials (sold separately)

 UV-Visible Absorbance Detector UV-4570

Measurable from ultraviolet to visible region (190 to 900 nm) with enhanced options such as microcell unit and spectrum measurements on flow.
PU-4580

Software Features


compactHPLC_PC
Chromatography Software-01

System control with ChromNAV Ver.2

ChromNAV Ver.2 is a chromatographic data system with excellent operability. From control of the entire system to analysis of measurement results and data management, we will pull out EXTREMA's performance without fail. ChromNAV CFR Ver.2 with enhanced data integrity is also available.

HPLC Pump Options

DG-4580

Degassing unit DG - 4580

Number of flow channels: 4 (extendable to 5 flow channels)
LG-45802

Low pressure gradient unit LG - 4580

Number of solvent: 4 liquid
MX-4580-D

Analysis mixing unit MX - 4580 - D

Number of solvent: 3 liquid

Manual 2 Solvent switching valve unit LV-4580-02

Number of flow channels: 2
* Mounting panel (option) is required separately.

PU-4580

Bottle stand BS-4500

Maximum number of storage bottles: 5 (in the case of 500 mL Duran® bottles) 4 at maximum (in case of 1 L Duran® bottle)
BS-4500
1L bottle installation example (Duran® bottle is sold separately.)
Duran ® is a registered trademark of the German Duran Group.

Manual injector 7725i

Standard loop: 20 μL (Loop capacity can be changed by option)
7725i

Left: 7725i, Right: Installation example (panel optional)

Specifications



HPLC pump

Model
PU-4580
Flow setting range 0.001 to 10.0 mL / min (0.001 mL / min step)
Flow rate accuracy Among the set value ± 1% or ± 2 μL / min whichever is greater (0.5 to 10.0 mL / min)
Flow precision 0.05% RSD or ± 0.04 min SD whichever is larger (0.5 to 5.0 mL / min, designation condition)
Maximum working pressure 50 MPa (~ 6.0 mL / min)
35 MPa (~ 10.0 mL / min)


Autosampler

Model
AS-4550
Injection method Fixed loop method and variable injection method (sample loss zero possible)
Injection amount setting range * 0.1 ~ 200 μL (0.1 μL step, 1 μL step (100 μL ~))
Sample loop 100 μL (standard)
Number of sample specimens 50 (standard, 2.0 mL vial)
Maximum working pressure 35 MPa
* Replacement of sample loop etc. is necessary depending on injection volume. In the case of the fixed loop method, only loop volume injection is required.
 For the variable dose injection method, the linearity range of the injection volume is 50 to 60% of the capacity of the attached sample loop.


UV-Visible Absorbance Detector

Model
UV-4570
light source D 2 lamp, WI lamp
Wavelength range 190 - 900 nm
Noise level ± 0.3 × 10 -5 AU (designation condition)
Drift 1.5 × 10 -4 AU / h (specified condition)
